| Video |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 1280 x 720 |
| Scanning Mode | Progressive Scan |
| Lens Type | Optional (C/CS mount) |
| Iris Control | DC Auto Iris / Manual Iris |
| Min. Illumination | COLOR : 0.7 lux @ F1.2
B/W : 0.8 lux @ F1.2 |
| S/N Ratio | More than 45 dB |
| Dynamic Range | More than 70 dB |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/8000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15) |
| Day and Night | Electrical |
| Image Setting | Configurable Exposure, White Balance, Sharpness |
| Backlight Compensation | On / Off / HSBLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | - |
| De-fog | - |
| Privacy Masking | 16 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 RCA |
| Signal Format | NTSC or PAL(selectable) |
| Network |
| Video Compression | H.264 (MP), M-JPEG |
| Intelligent Codec | - |
| Bitrate Control | H.264 - CBR / VBR |
| Audio Compression | - |
| Two-way Audio | - |
| IP Camera Protocol | DirectIP, ONVIF Profile S |
| Max. Frame Rate | 30fps : 1280 x 720 |
| Supported Resolution | 2592x1944, 1280x960, 640x480, 320x240 |
| Multi-video Streaming | DirectIP™ Mode : Quadruple Streaming
Compatibility Mode : Triple Streaminging |
| Network Protocols | DirectIP™ Mode : DirectIP Protocol
Compatibility Mode : RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP,
RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP |
| Security | Multi-user Authority, IEEE 802.1x, IP Filtering, HTTPS, SSL Encryption |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer | Yes (Up to 60MB) |
| Edge Storage | - |
| ALARM AND EVENT |
| Trigger Event | Motion Detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In / Out | - |
| Alarm In / Out | - |
| Environmental |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F), Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical |
| Power Source | 12VDC, PoE (IEEE 802.3af Class 2) |
| Power Consumption | 4.8W |
| Approval | FCC, CE, KC |
| Mechanical |

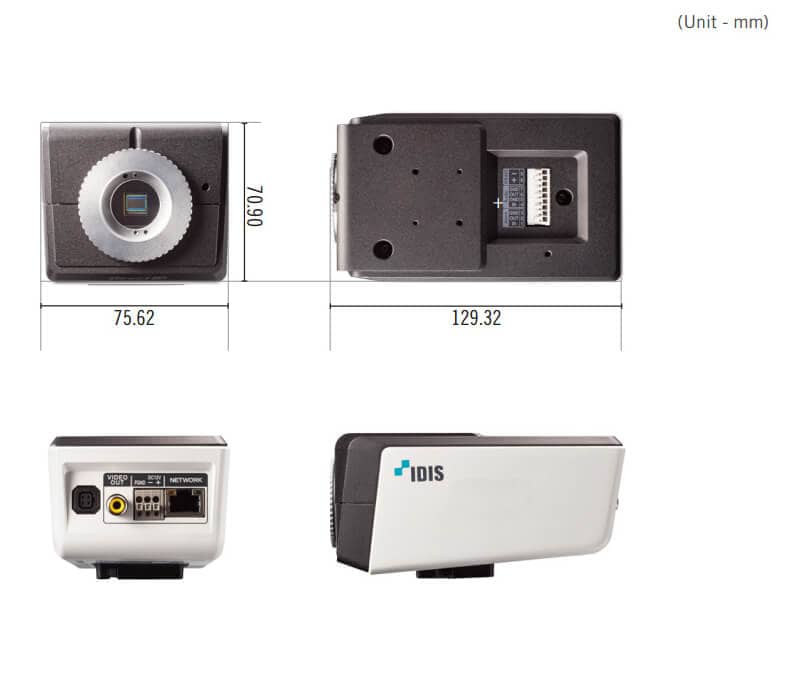

| Dimensions (W x H x D) | 75.6mm x 61mm x 129.3mm (2.98" x 2.4" x 5.09") |
| Weight | 0.4 kg (0.89 lb) |
Easy Installation
PoE
ONVIF
