12MP
Fixed Lens
IR LED
True WDR
Easy Installation
Two-way audio
PoE
IR Cut Filter Removable
ONVIF
| Video | |
| Image Sensor | 1/1.7" 12MP CMOS |
| Max. Resolution | 3200 x 2944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Fixed-focal |
| Focal Length | f=1.2mm |
| Aperture | F2.2 |
| Iris Control | Fixed Iris |
| Angular Field of View | 180°(H), 180°(V), 180°(D) |
| Pan/Tilt/Zoom | - |
| Min. Illumination | Color : 0.2 lux @ F2.2 B/W : 0 lux (IR LED ON) |
| S/N Ratio | 52.7dB |
| Dynamic Range | 120 dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 15m (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off / HSBLC |
| Mirroring / Pivot | - |
| Image Stabilizer | - |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone, Heatmap |
| Viewing Composition | 1O, 1P, 1P2R, 2P, 4R, 1O7R |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - CBR / VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 30ips : 3200 x 2944 15ips : 3200 x 2944 (WDR) |
| Supports Resolution | 3200x2944, 2400x2208, 3200x1472, 1600x1472, 800x736, 800x368 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x ,IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100/1000BASE-T) |
| Recording Session Buffer | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | Line-in 1ea + Internal Mic 1ea / Line-out 1ea |
| Alarm In / Out | Input 1ea / Output 2ea |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F), Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE (IEEE 802.3af Class 3) |
| Power Consumption | 12V=, 1A, 12W PoE, IEEE 802.3af(Class 3), 12W |
| Approval | FCC, CE, KC |
| Mechanical | |

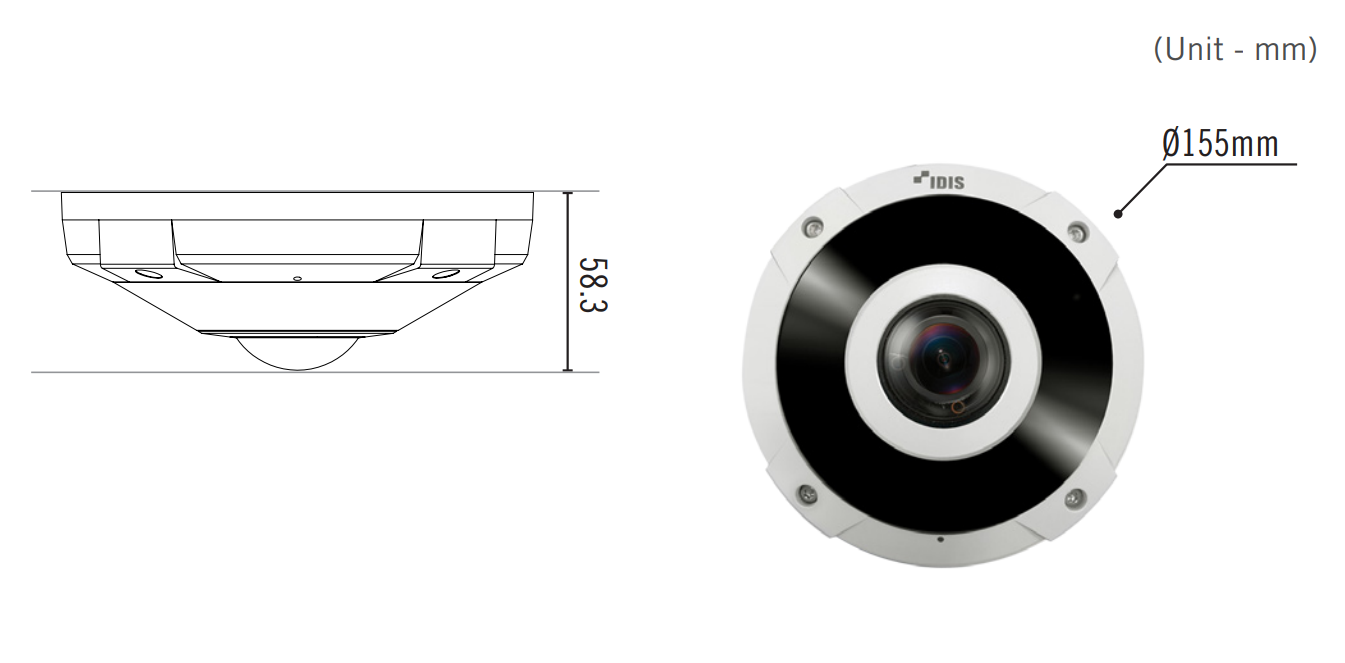

| Dimensions (Ø x H) | Ø155.0mm x 52.8mm (Ø6.10" x 2.08") |
| Weight | 0.815 kg (1.79 lb) |
| Installation environment | Accessory configuration |
|
Wall |
DA-MA2100
Model:DA-MA2100
+
WALL MOUNT
Model:DA-WM2050
or
JUNCTION BOX
Model:DA-JB2200
or
Tilt Mount
Model:DA-TM1100
|
|
Celling |
DA-MA2100
Model:DA-MA2100
+
CEILING MOUNT
Model:DA-CM2050
|
|
Pole |
DA-MA2100
Model:DA-MA2100
+
WALL MOUNT
Model:DA-WM2050
+
Pole Mount
Model:DA-LM2000
or
JUNCTION BOX
Model:DA-JB2200
+
Pole Mount
Model:DA-LM2000
or
Tilt Mount
Model:DA-TM1100
+
Pole Mount
Model:DA-LM2000
|
|
Corner |
DA-MA2100
Model: DA-MA2100
+
WALL MOUNT
Model: DA-WM2050
+
Corner Mount
Model: DA-RM2000
or
JUNCTION BOX
Model: DA-JB2200
+
Corner Mount
Model: DA-RM2000
or
Tilt Mount
Model: DA-TM1100
+
Corner Mount
Model: DA-RM2000
|
