5MP
Motorized focus Lens
IR LED
True WDR
Easy Installation
Two-way audio
PoE
IR Cut Filter Removable
ONVIF
| Video | |
| Image Sensor | 1/2.8" CMOS |
| Max. Resolution | 2592 x 1944 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=3.0-13.5mm |
| Aperture | F1.4 - 3.2 |
| Iris Control | DC IRIS |
| Angular Field of View | Wide : 91°(H) 66°(V) 120°(D) Tele : 31°(H) 23°(V) 38°(D) |
| Pan/Tilt/Rotate Range | Pan: -175° ~ 175°, Tilt: 0° ~ 67°, Rotate: -177° ~ 177° |
| Min. Illumination | COLOR : 0.1 Lux @ F1.4, B/W : 0 Lux (IR LED ON) |
| S/N Ratio | More than 45dB |
| Dynamic Range | 120dB(True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1~1/5, 1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 30m/98.4ft (6ea) |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off / HSBLC |
| Mirroring / Pivot | Horizontal / Vertical / Pivot |
| Image Stabilizer | Yes (DIS) |
| De-fog | On / Off |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | - |
| Network | |
| Video Compression | H.265, H.264 (MP) M-JPEG, |
| Intelligent Codec | Supported |
| Video Compression Level (Quality) | Basic, Standard, High, Very High |
| Bitrate Control | H.265 - CBR / VBR, H.264 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF |
| Max. Frame Rate | 4:3 mode : 30ips : 2592 x 1944(WDR) 16:9 mode : 30ips : 2592 x 1456(WDR) |
| Supports Resolution | 16:9 : 2592x1456, 1920x1080, 1280x720, 640x360 4:3 : 2592x1944, 1920x1440, 1280x960, 640x480 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x ,IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 100MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Audio In/ Out | 1(Built In MIC)+1 / 1 |
| Alarm In / Out | 1 / 1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Material | Plastic |
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F), Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 0.7A, 8.4W PoE, IEEE 802.3af(Class 3), 8.2W |
| Approval | FCC, CE, KC |
| Mechanical | |

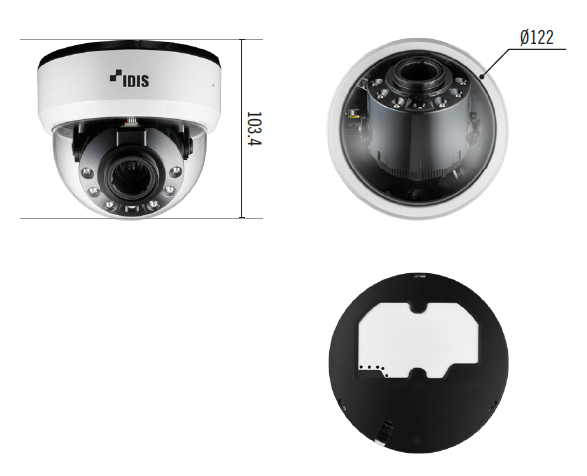

| Dimensions (Ø x H) | Ø122 x 103.4mm |
| Weight | 0.35kg(0.77lb) |
| Installation environment | Accessory configuration |
|
Wall |
Wall Mount
Model:DA-WM2160
or
MOUNT ADAPTER
Model:DA-MA4300
+
WALL MOUNT
Model:DA-WM2050
or
Wall mount
Model:DA-WM4200
|
|
Celling |
MOUNT ADAPTER
Model:DA-MA4300
+
CEILING MOUNT
Model:DA-CM2050
|
|
Pole |
MOUNT ADAPTER
Model:DA-MA4300
+
WALL MOUNT
Model:DA-WM2050
+
Pole Mount
Model:DA-LM2000
|
|
Corner |
MOUNT ADAPTER
Model: DA-MA4300
+
WALL MOUNT
Model: DA-WM2050
+
Corner Mount
Model: DA-RM2000
|
|
ETC |
Flush Mount
Model: DA-FM1500
|
