2MP
Motorized focus Lens
True WDR
Easy Installation
Two-way audio
PoE
IR Cut Filter Removable
ONVIF
| Video | |
| Image Sensor | 1/3 |
| Max. Resolution | 1920 x 1080 |
| Scanning Mode | Progressive Scan |
| Lens Type | Motorized Vari-focal |
| Focal Length | f=2.8 - 12mm |
| Aperture | F1.6 - 2.7 |
| Iris Control | P-Iris |
| Angular Field of View | Wide : 98°(H), 52°(V), 116°(D), Tele : 33°(H), 18.5°(V), 37.9°(D) |
| Pan/Tilt/Rotate Range | Pan: -176° ~ 176°, Tilt: 0° ~ 66°, Rotate: -90° ~ 90° |
| Min. Illumination | COLOR : 0.1 lux @ F1.6 B/W : 0.01 lux @ F1.6 |
| Dynamic Range | 120dB (True WDR) |
| Electronic Shutter Speed | Auto / Manual (1/30 ~ 1/10000), Anti-Flicker, Slow Shutter ( 1 ~ 1/5, 1/7.5, 1/15) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | - |
| Image Setting | Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control) |
| Backlight Compensation | On / Off / HSBLC |
| Image Stabilizer | - |
| De-fog | On / Off |
| Privacy Masking | 8 Zones |
| Intelligent Video | Video Motion Detection, Active Tampering Alarm, Trip Zone |
| Video Out | 1 BNC(Accessory) |
| Network | |
| Video Compression | H.265, H.264 (MP), M-JPEG |
| Intelligent Codec | Supported |
| Bitrate Control | H.264 - CBR/ VBR, H.265 - CBR / VBR |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Two-way Audio | Yes |
| IP Camera Protocol | DirectIP 2.0, ONVIF Profile S |
| Max. Frame Rate | 60ips : 1920 x 1080 30ips : 1920 x 1080(WDR) |
| Supports Resolution | 1920x1080, 1280x720, 704x480, 640x360, 352x240 |
| Multi-video Streaming | Quadruple Streaming |
| Network Protocols | DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, uPNP, SNMPv2 |
| Security | SSL Encryption, Multi-user Authority, IEEE 802.1x IP Filtering, HTTPS |
| Remote Access Client | DirectIP NVR Connection, IDIS Web, IDIS Mobile, IDIS Solution Suite |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| ALARM AND EVENT | |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Event Notification | Remote S/W, Email (with Image) |
| Pre-recorderd Voice Alert - IDIS protoco | Off / On |
| Audio In/ Out | 1/1 |
| Alarm In / Out | 1/1 |
| Environmental | |
| Vandal Proof Casing | - |
| Outdoor Ready | - |
| Operating Temperature | -10°C ~ 50°C ( 14°F ~ 122°F) *Starting up at above 0°C (32°F) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 2) |
| Power Consumption | 12V=, 0.47A, 5.64W PoE, IEEE 802.3af(Class 2) |
| Approval | FCC, CE, KC |
| Mechanical | |

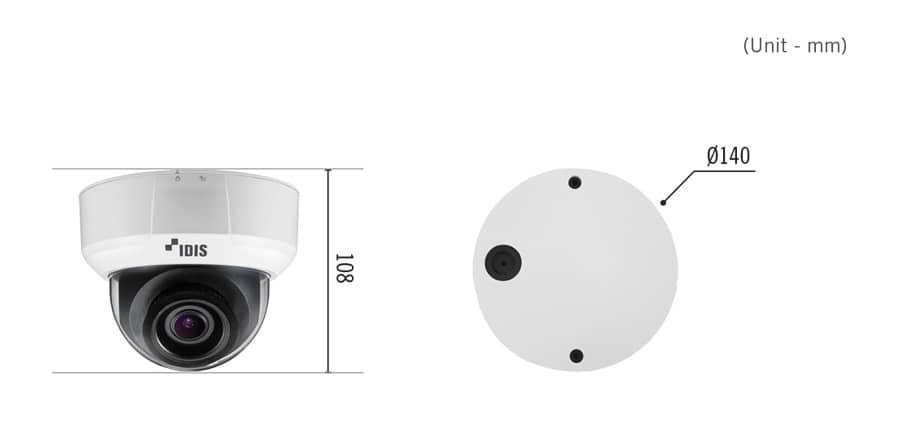

| Dimensions (Ø x H) | Ø140mm x 108mm (Ø5.5" x 4.25") |
| Weight | 0.49kg |
| Installation environment | Accessory configuration |
|
Wall |
MOUNT ADAPTER
Model:DA-AP3000
+
WALL MOUNT
Model:DA-WM2050
or
MOUNT ADAPTER
Model:DA-MA2000
+
WALL MOUNT
Model:DA-WM2050
|
|
Celling |
MOUNT ADAPTER
Model:DA-AP3000
+
CEILING MOUNT
Model:DA-CM2050
or
MOUNT ADAPTER
Model:DA-MA2000
+
CEILING MOUNT
Model:DA-CM2050
|
|
Pole |
MOUNT ADAPTER
Model:DA-AP3000
+
WALL MOUNT
Model:DA-WM2050
+
Pole Mount
Model:DA-LM2000
or
MOUNT ADAPTER
Model:DA-MA2000
+
WALL MOUNT
Model:DA-WM2050
+
Pole Mount
Model:DA-LM2000
|
|
Corner |
MOUNT ADAPTER
Model: DA-AP3000
+
WALL MOUNT
Model: DA-WM2050
+
Corner Mount
Model: DA-RM2000
or
MOUNT ADAPTER
Model: DA-MA2000
+
WALL MOUNT
Model: DA-WM2050
+
Corner Mount
Model: DA-RM2000
|
